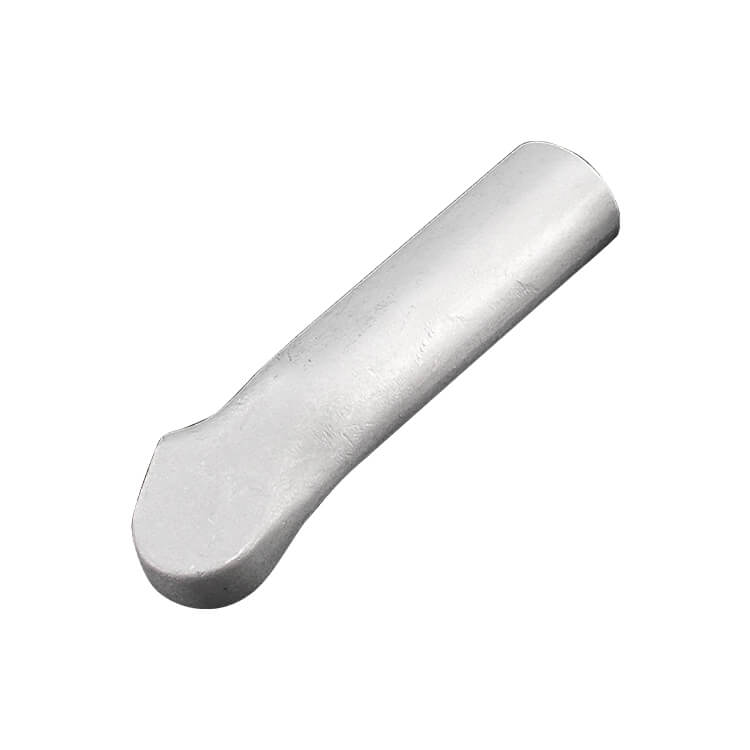

Bicycle Forging E-13: Tapering Arm Forging with Flat Paddle End
Bicycle forging E-13 is an arm-type aluminum forging developed by Al Forge Tech (AFT) to the customer’s drawing. One end is a round bar that transitions smoothly into a wide flat paddle at the other end, with the section changing from round to flat along the arm. The flat end can be machined with mounting holes or used as a clamping or connecting face, as is common on bicycle operating levers, support arms and connectors.
Machining a round-to-flat transition from bar removes a lot of material; forging presses the changing section directly, with grain flow turning smoothly into the flat end, combining good material yield with strength. After hot forging, AFT can heat treat, CNC-machine mounting holes and faces, and finish the part by anodizing or shot blasting.
主要功能
- Round section transitions smoothly into a flat paddle end
- Grain flow follows the section change continuously
- Flat end machinable with mounting holes or clamping faces
- Delivered as forged blank, semi-finished or finished part
Bicycle Forging E-13 Specifications and Manufacturing Capability
| 商品 | 詳細 |
|---|---|
| 產品類別 | Aluminum Forging Bicycle Parts |
| Product No. | E-13 |
| 申請 | Bicycle operating levers, support arms and connectors (to customer design) |
| 主要過程 | 閉式熱鍛造（熱鍛造壓機 600T–8,000T） |
| 材質 | Selected to customer specification; 2xxx, 5xxx, 6xxx and 7xxx series aluminum alloys available (e.g. 2014, 6061, 6082, 7075) |
| 熱處理 | 根據合金與強度要求而提供的內部 T4 處理方案（8 套）及 T6 人工老化處理方案（7 套） |
| 二次加工 | CNC 加工（52 台加工中心、30 台銑床）、銑削、振動磨削 |
| 表面處理 | 按要求進行陽極氧化（包括硬陽極氧化）、噴射粉碎、電子塗層或塗漆。 |
| 檢查 | Zeiss CMM (4 units), hardness testers, spectrometer, fluorescent penetrant inspection line |
| 尺寸與公差 | 按客戶提供2D/3D圖紙 |
| 品質管理系統 | IATF 16949:2016、ISO 14001:2015 |
Bicycle Forging E-13 Manufacturing Process
- 繪圖評估與 DFM我們確認合金、載荷方向和關鍵尺寸，然後執行 QForm 模擬，以預測金屬流動和缺陷風險。.
- 設計與製造銑刀組數（例如，阻斷刀和完成刀）視零件的複雜程度而定，銑刀輪廓則使用便攜式3D掃描儀進行檢查。.
- 熱鍛造600T–8,000T 熱鍛造壓 Presses 的閉式成形技術創造出持續的晶粒流，並遵循零件的輪廓。.
- 熱處理T4 溶液處理和 T6 人工老化處理均在廠內進行，參數由合金和強度要求設定。.
- CNC加工 以及完成孔、螺紋和接合面均經過機械加工，然後根據需要進行拋光、振動拋光、噴丸或陽極氧化處理。.
- 檢查與運輸尺寸、硬度及化學成分均通過 CMM、硬度測試儀及分光光度儀進行驗證，且所有批次的產品均遵照 IATF 16949 的標準進行追蹤。.
常見問題
How does E-13 differ from E-12?
E-12 ends in a round boss suited to a pivot or spline connection; E-13 ends in a wide flat paddle suited to mounting holes or a clamping face. Both are arm-type forgings developed to customer drawings, and the choice of shape depends on how the part is assembled and loaded.
How is dimensional consistency controlled on a forging with a changing section?
Material flow varies greatly through the transition zone and must be precisely controlled by the die. AFT confirms fill at each section with QForm during die design, checks first, middle and last pieces in every production lot, reworks the die when wear causes dimensional drift, and measures key sections on CMM.
How are MOQ and lead time for the Bicycle Forging E-13 determined?
MOQ and lead time depend on part size, number of die sets, alloy and machining scope, and are confirmed in the quotation after drawing review. The typical sequence is die development, forged samples, sample approval and then mass production. Sharing your annual volume and call-off schedule helps us plan dies and capacity for the Bicycle Forging E-13.
Can you assess forging feasibility while the Bicycle Forging E-13 is still in design?
是的。Al Forge Tech 主要作為 OEM 供應商提供服務，我們的工程師可以在構思或繪圖階段就設計的可生產性（DFM）提供意見，例如調整薄邊緣、急切的切面變化或設計角度，以避免殘料和未填充區域。QForm 模擬能及早預測金屬流動，並與我們已有的模具設計經驗進行交叉核對。.
Can the Bicycle Forging E-13 be anodized or given other surface finishes?
Yes. Al Forge Tech offers anodizing (including hard anodizing), shot blasting, vibratory finishing, e-coating and painting, plus pickling and ultrasonic washing lines to clean parts after machining. Please note the finish type and film thickness on the drawing so machining allowances and cosmetic standards for the Bicycle Forging E-13 can be evaluated together.
Request a Quote for the Bicycle Forging E-13
Developing a new Bicycle Forging E-13 or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
