Suspension Component
Description

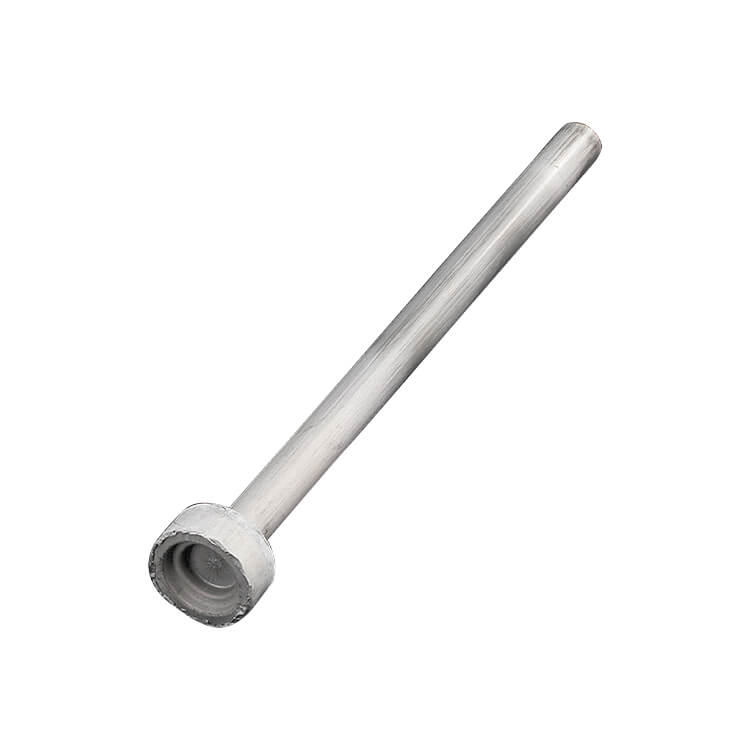

Aluminum Bicycle Suspension Component: Damper Rod with Integral End Seat
This aluminum bicycle suspension component is an internal rod for a suspension fork or rear shock. It has a long slender solid or hollow shaft with a larger-diameter polygonal end seat at one end, which can be threaded or used as a mounting base for a piston or valve seat. Rod and end seat are formed in one piece, reducing the loosening and fit errors of threaded assemblies.
Turning a slender rod with a large end seat from bar would start from bar of the seat diameter and remove most of the shaft material. Forging gathers material into the end seat while the shaft keeps the stock diameter, saving material and turning time. Al Forge Tech (AFT) evaluates cold or hot forming by seat volume and rod length, then finish-turns the shaft diameter and threads.
Key Features
- Slender shaft and large end seat formed in one piece
- Upset-forged end seat saves bar stock and turning time
- Shaft OD, threads and seat finish-turned
- Anodizing or hard anodizing available
Aluminum Bicycle Suspension Component Specifications and Manufacturing Capability
| Item | Details |
|---|---|
| Product category | Aluminum Forging Bicycle Parts |
| Application | Internal damper rods and end seats for bicycle forks and rear shocks |
| Primary process | Hot or cold forging (upsetting), evaluated by end-seat volume and rod length |
| Material | Selected to customer specification; 2xxx, 5xxx, 6xxx and 7xxx series aluminum alloys available (e.g. 2014, 6061, 6082, 7075) |
| Heat treatment | In-house T4 solution treatment (8 units) and T6 artificial aging (7 units), set by alloy and strength requirement |
| Secondary machining | CNC machining (52 machining centers, 30 lathes), deburring, vibratory finishing |
| Surface finish | Anodizing (including hard anodizing), shot blasting, e-coating or painting, as required |
| Inspection | Zeiss CMM (4 units), hardness testers, spectrometer, fluorescent penetrant inspection line |
| Dimensions and tolerances | Per customer 2D/3D drawings |
| Quality system | IATF 16949:2016, ISO 14001:2015 |
Aluminum Bicycle Suspension Component Manufacturing Process
- Drawing review and DFM: we confirm alloy, load direction and critical dimensions, then run QForm simulation to predict metal flow and defect risk.
- Die design and manufacturing: the number of die sets (for example, blocker and finisher dies) is planned around part complexity, and die contours are checked with a portable 3D scanner.
- Cold forging: cold forming on 260T–2,500T presses, suited to thin-walled, tubular and dimensionally repeatable parts.
- Heat treatment: T4 solution treatment and T6 artificial aging are performed in-house, with parameters set by alloy and strength requirement.
- CNC machining and finishing: holes, threads and mating surfaces are machined, followed by deburring, vibratory finishing, shot blasting or anodizing as required.
- Inspection and shipment: dimensions, hardness and chemical composition are verified with CMM, hardness testers and a spectrometer, with lot traceability kept under IATF 16949.
FAQ
What is upsetting, and why does it suit a rod end seat?
Upsetting presses bar locally so material gathers at one end to form a larger-diameter head or seat. For a slender rod with a large end seat, it allows the part to be made from bar close to the shaft diameter instead of turning the whole part from thick bar of the seat diameter, cutting material use and machining time while grain flow follows the seat contour.
How is dimensional accuracy ensured on internal suspension parts?
Internal suspension parts mate with pistons, shims and seals, so shaft diameter and concentricity are critical. After heat treatment, AFT finish-turns the shaft and end seat, measures diameter, concentricity and threads with CMM and gauges, and keeps inspection records under IATF 16949.
Can you assess forging feasibility while the Aluminum Bicycle Suspension Component is still in design?
Yes. Al Forge Tech works mainly as an OEM supplier, and our engineers can give design-for-manufacturability (DFM) feedback at the concept or drawing stage, such as adjusting thin ribs, abrupt section changes or draft angles to avoid laps and underfill. QForm simulation predicts metal flow early, and the results are cross-checked against our die design experience.
How do you keep the Aluminum Bicycle Suspension Component consistent from lot to lot?
Al Forge Tech runs incoming (IQC), in-process (IPQC) and final (FQC) inspection under IATF 16949:2016, supported by 4 Zeiss CMMs, hardness testers, a spectrometer and a fluorescent penetrant inspection line. First, middle and last pieces of every lot are checked against the die; when wear causes dimensional drift, the die is reworked to keep the Aluminum Bicycle Suspension Component stable across lots.
How are MOQ and lead time for the Aluminum Bicycle Suspension Component determined?
MOQ and lead time depend on part size, number of die sets, alloy and machining scope, and are confirmed in the quotation after drawing review. The typical sequence is die development, forged samples, sample approval and then mass production. Sharing your annual volume and call-off schedule helps us plan dies and capacity for the Aluminum Bicycle Suspension Component.
Request a Quote for the Aluminum Bicycle Suspension Component
Developing a new Aluminum Bicycle Suspension Component or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
